220kV Composite Shell Outdoor Terminal,

220kV Composite Shell Outdoor Terminal ()meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

　Product Features

　　Epoxy pipe coated with silicone rubber umbrella skirt, flexible composite insulation material security riot, can ensure the safety of the electrical equipment and personnel around, suit-able for centralized place to populated areas and electric equipment.

　　Composite tube light weight, convenient transportation and installation.

　　Stress cone using imported high elastic liquid silicone rubber, and carry on finite element optimization design, effectively solve the problem of electric field stress concentration.

　　Excellent hydrophobic properties and creepage resistance, arc resistance, good weatherability and the fouling resistance, unfavorable external insulation aging.

　　Main insulation parts have been stipulated in the standard after testing in the factory.

Products Comply With The Following Standards

　　GB/T 18890.3-2015 Power cables with cross-linked polyeth-ylene insulation and their accessories for rated voltage of 220 kV (Um=252kV).Part 3:Accessories

　　IEC 62067-2011 Power cables with extruded insulation and their accessories for rated voltages above 150 kV (Um = 170 kV) up to 500 kV (Um = 550 kV). Test methods and requirements

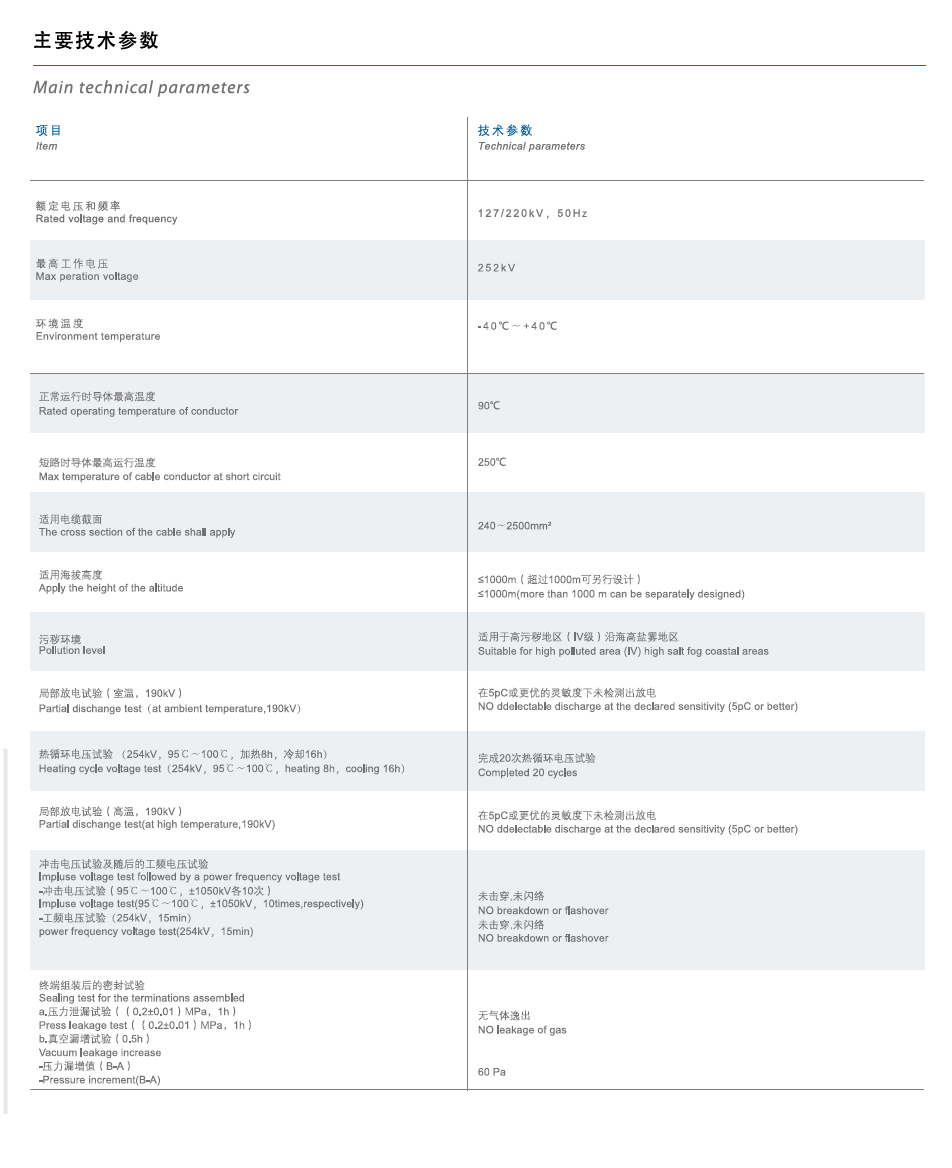

Main technical parameters
