220kV integral prefabricated insulating part insulation – straight connector,

220kV integral prefabricated insulating part insulation – straight connector ()meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

　Product Features

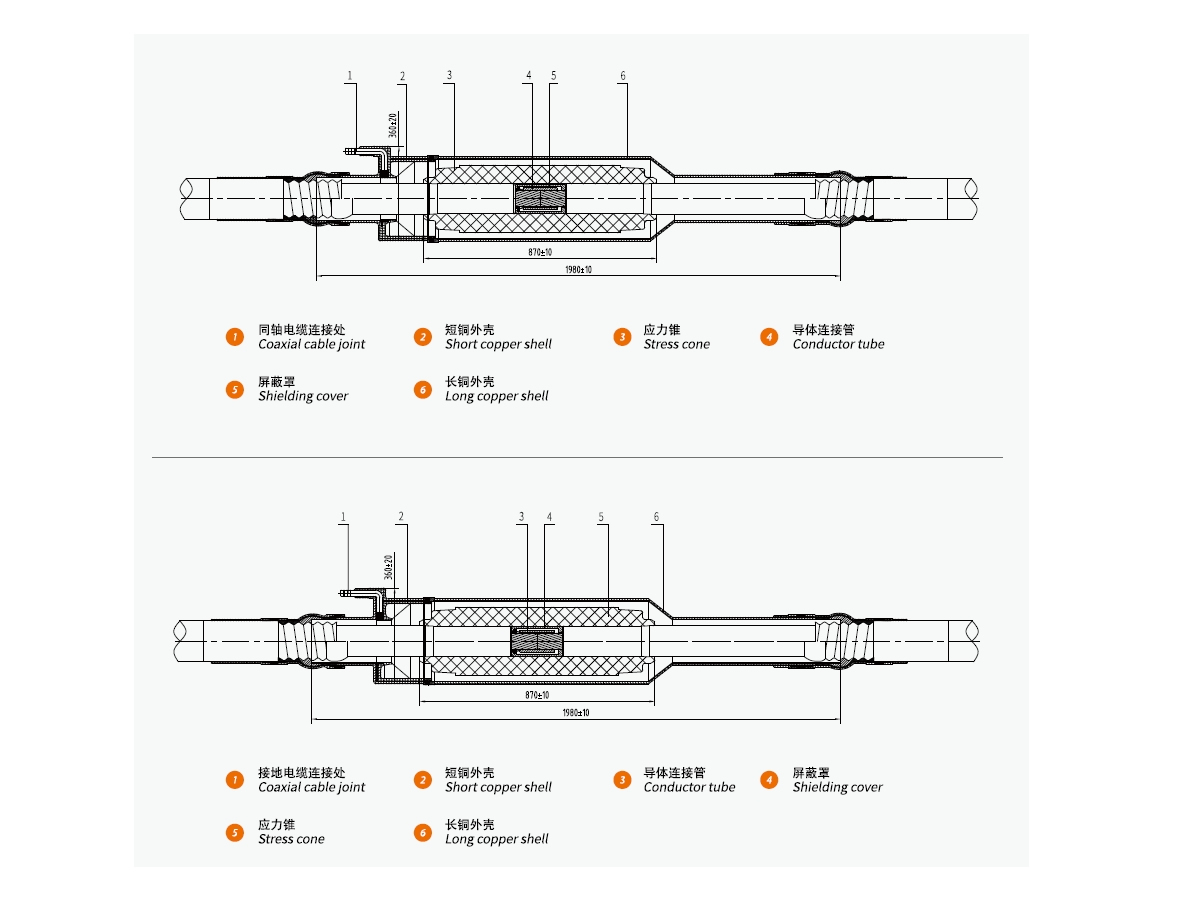

　　The main insulation of the product is the integral prefabricated structure, the high pressure shielding, the stress cone and the insulation piece are injected into a whole piece, the structure is simple, and the installation is convenient.

　　The outer shielding layer of the main insulating piece is made of semi conductive silicone rubber, so as to avoid the defect that the spraying surface is easy to be damaged.

　　The shell is made of high strength copper shell protection box, high mechanical strength, good sealing performance.

　　The main insulation parts have been tested in the factory according to the standard.

Products Comply With The Following Standards

　　GB/T 18890.3-2015 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 220 kv(Um=252kV). Part 3: Accessories

　　IEC 62067-2011 Power cables with extruded insulation and their accessories for rated voltages above 150 kV (Um = 170 kV) up to 500 kV (Um = 550 kV). Test methods and requirements

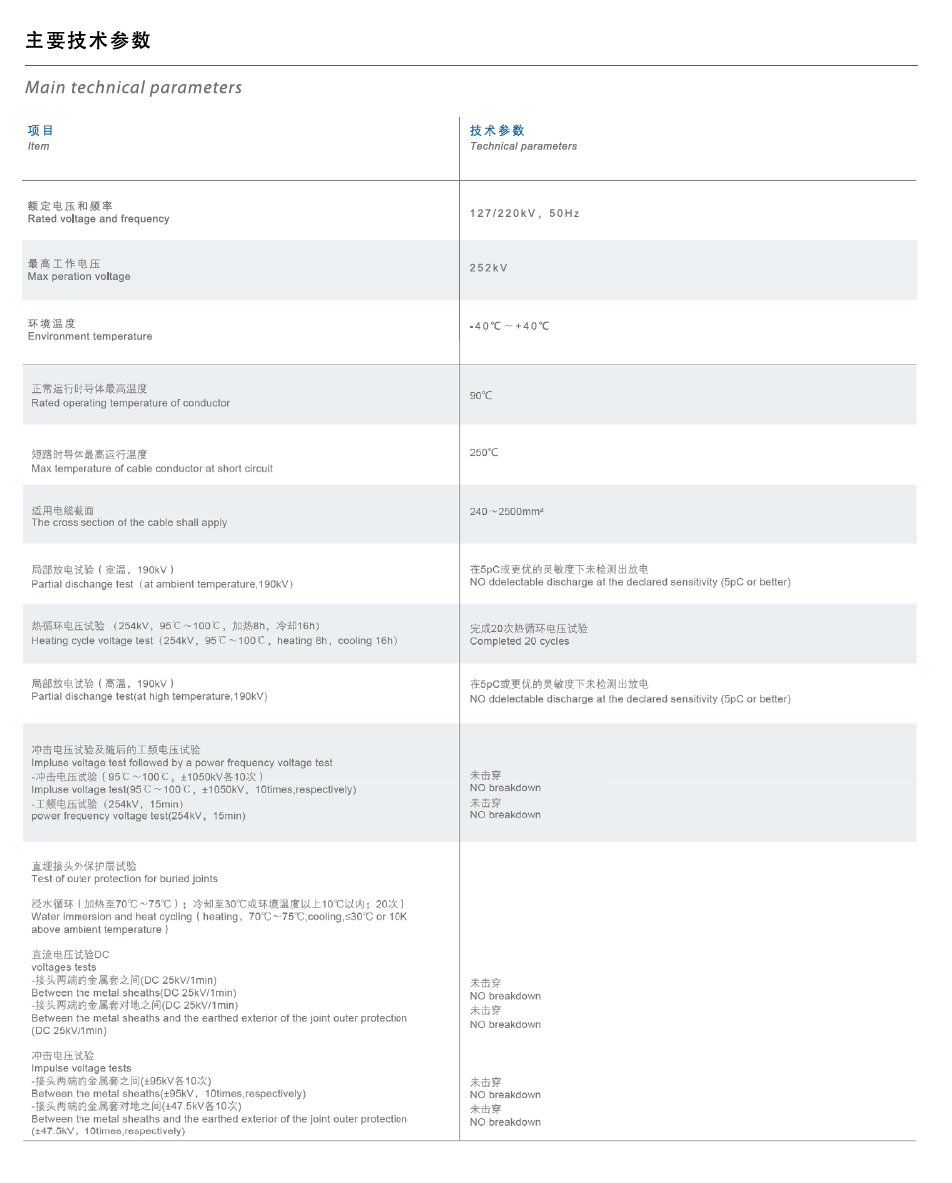

Main technical parameters

JYTOP Cable is a professional 220kV integral prefabricated insulating part insulation – straight connector () manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
