66-110 kV porcelain sleeve outdoor terminal,

High strength porcelain bushing,high mechanical strength, good stability,notaging,especially suitablefor coastal andbad naturalenvironment area.

Detail
Specifications
Enquiry

66-110 kV porcelain sleeve outdoor terminal ()meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Product Features

High strength porcelain bushing,high mechanical strength, good stability,notaging,especially suitablefor coastal andbad naturalenvironment area.

Use a umbrella skirt size and structure,proved its excellentresis-tance to fouling.

Specialsealstructuredesign,ealedperformanceisgoodputan end to the possible defects such as flooding, the oil spill.

Porcelain:there are two kinds of size 1280 mm high,the creep-age distanceis3150 mm,used in levellllpolluted area;3906 mm,1400 mm high,its creepagedistance is suitable forthelevel IV polluted area;

Maininsulation partsin thefactory according to theregulations of the standard after testing.

GB/T 11017.3-2014Power cables with cross-linked polyethylene insulation and their accessoriesforratedvoltageof110kV(Um=126 kV).Part 3:Accessories

IEC 60840-2011Power cables with extruded insulation and their accessories for rated voltages above 30 kv(Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

Products Comply With The Following Standards

GB/T 11017.3-2014 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 110 kV (Um=126 kV). Part 3:Accessories

IEC 60840-2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

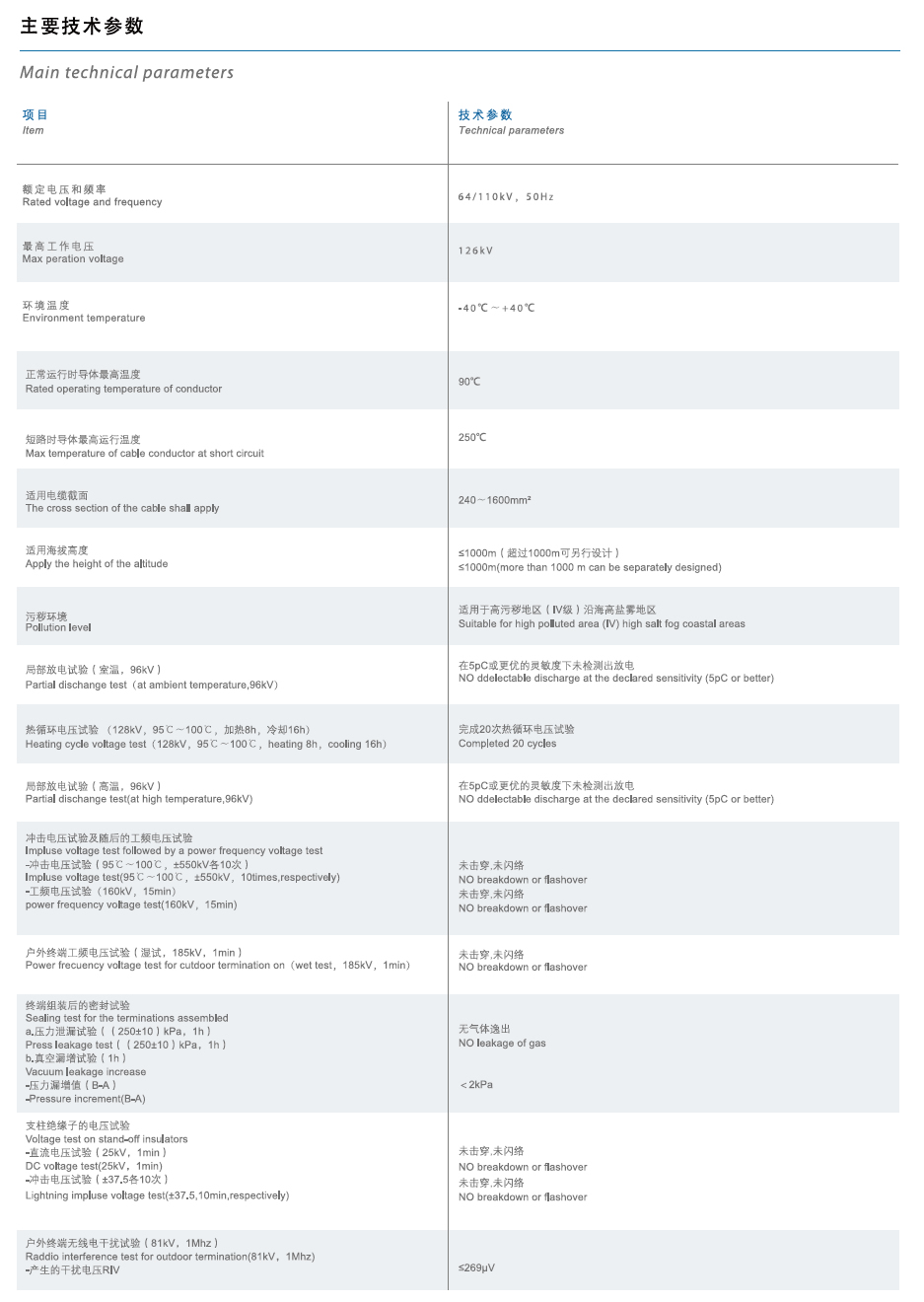

Main technical parameters

JYTOP Cable is a professional 66-110 kV porcelain sleeve outdoor terminal () manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
