66~110kV Composite Shell Outdoor Terminal,

66~110kV Composite Shell Outdoor Terminal ()meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Product Features

By epoxy pipe coated with silicone rubber umbrella skirt, casing with imported high quality liquid insulation filler, suitable for con-centrated area to populated areas and electric equipment.

Safety explosion-proof, no injury and personnel in and around elec-trical equipment.

Light weight, ease of installation.

The fouling resistance good, external insulation aging.

Main insulations’ parts have been stipulated in the standard after testing in the factory.

Products Comply With The Following Standards

GB/T 11017.3-2014 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 110 kV (Um=126 kV). Part 3:Accessories

IEC 60840-2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

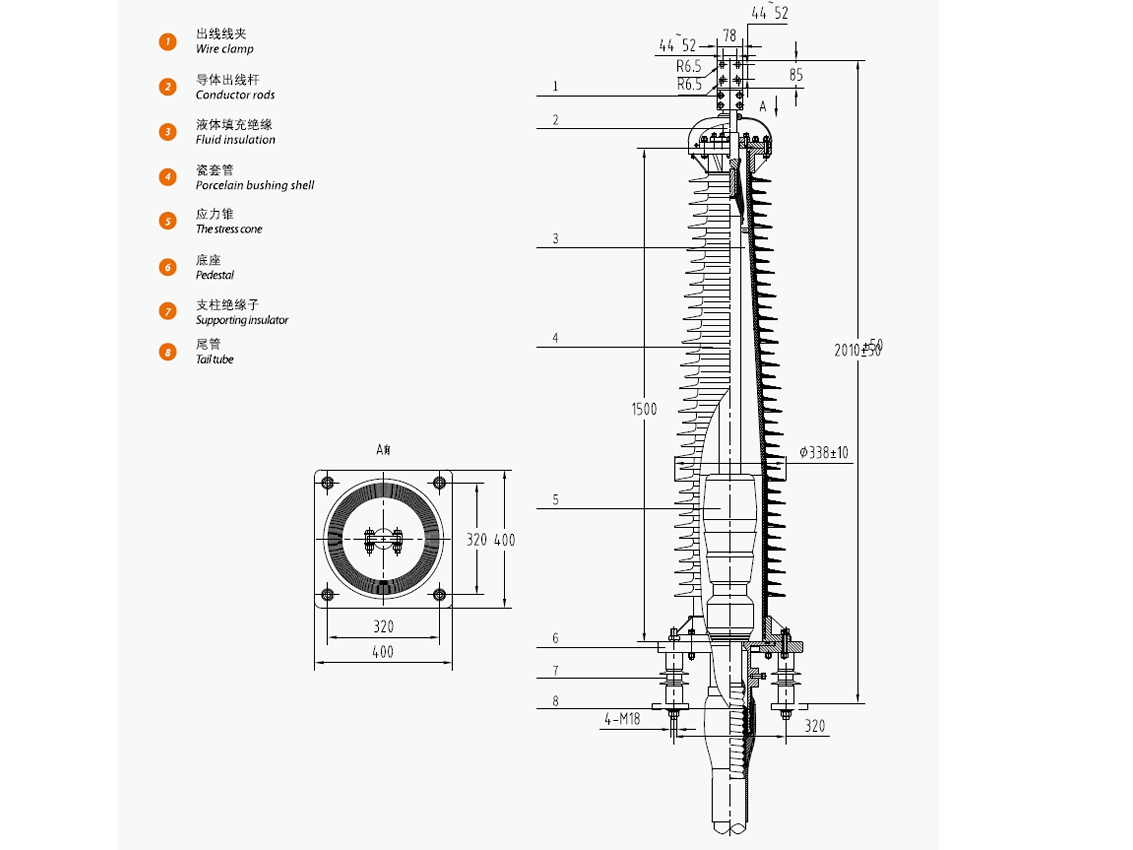

Main technical parameters

JYTOP Cable is a professional 66~110kV Composite Shell Outdoor Terminal () manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
