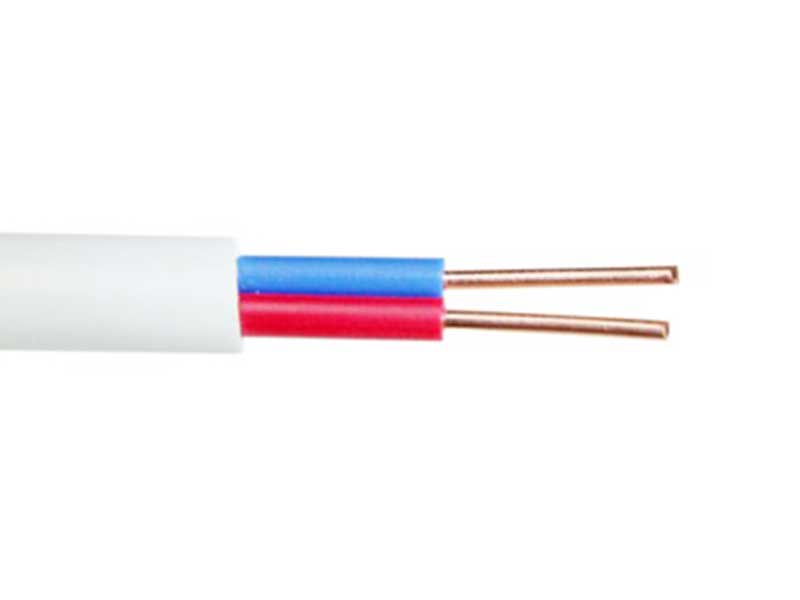

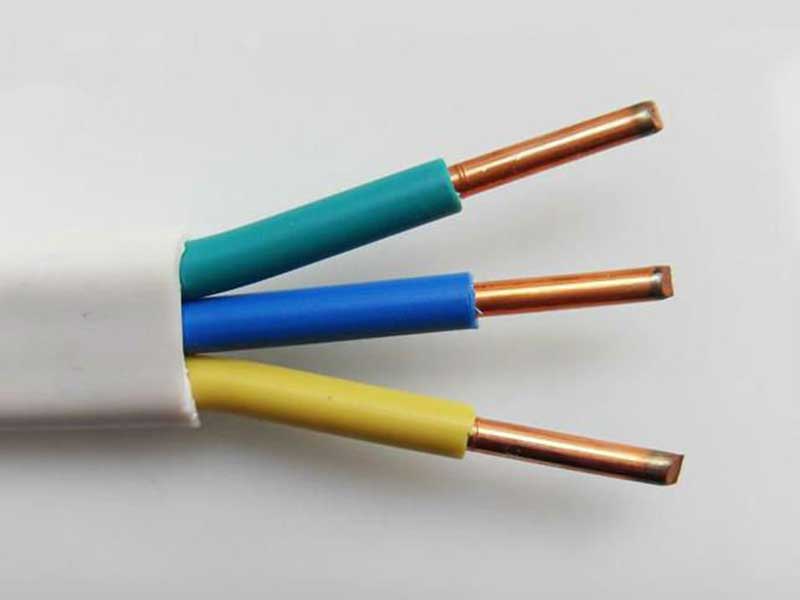

H05VVH-R,H05VVH-U (PVC Insulated and Sheathed Flat cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Application :
Suitable for surface wiring indoor or outdoor.
Construction:
1.Solid or Stranded Annealed copper/ aluminum Conductor.
2.PVC insulation
3.PVC sheath.
4.Voltage 300V/500V
Technical Sheet:
|
Nom. Cross Section Area mm2 |
Structure No. x mm |
Approx O.D mm |
Thickness of insulation |
Thickness of sheath |
Approx Weight kg/km |
|
|
Cu |
Al |
|||||
|
2X1.0 |
1 X1.13 |
4.6X7.3 |
0.6 |
0.9 |
51.0 |
18.1 |
|
2X1.5 |
1X1.38 |
5.2X8.2 |
0.7 |
0.9 |
65.9 |
12.1 |
|
2X2.5 |
1X1.78 |
5.6X9.6 |
0.8 |
1.0 |
95.7 |
64.9 |
|
2X4.0 |
1X2.25 |
6.2X10 |
0.8 |
1.0 |
146.0 |
80.7 |
|
2X6.0 |
1X2.76 |
6.8X11.6 |
0.8 |
1.1 |
200.0 |
104.0 |
|
2X10.0 |
7X1.35 |
8.3X14.2 |
1.0 |
1.2 |
323.0 |
177.0 |
|
3X1.0 |
1 X1.13 |
4.6X9.5 |
0.6 |
0.9 |
74.3 |
/ |
|
3X1.5 |
1X1.38 |
5.2X10.8 |
0.7 |
0.9 |
95.6 |
/ |
|
3X2.5 |
1X1.78 |
5.6X12.4 |
0.8 |
1.0 |
140.0 |
93.9 |
|
3X4.0 |
1X2.25 |
6.2X13.6 |
0.8 |
1.0 |
220.0 |
123.0 |
|
3X6.0 |
1X2.76 |
6.8X16.0 |
0.8 |
1.1 |
295.0 |
153.0 |
|
3X10.0 |
7X1.35 |
8.3X20.8 |
1.0 |
1.2 |
485.0 |
261.0 |
PVC Insulated and Sheathed Flat cable,H05VVH-R,H05VVH-U specifications(data sheet,table,full form)
