N2XSY,NA2XSY,Power cables with XLPE insulation and PVC sheath

Standard:HRN HD 620 S2 Part 10C,IEC 60 502-2,DIN VDE 0276T 620
Structure:Cu(Al)/XLPE/CTS/PVC
Min.Order QTY: 1000 meters
Package: Wooden drum, Steel wooden drum, Coil, Box…
Payment Terms: T/T, L/C, D/P
Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen

Detail
Specifications
Enquiry

N2XSY,NA2XSY (Power cables with XLPE insulation and PVC sheath)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

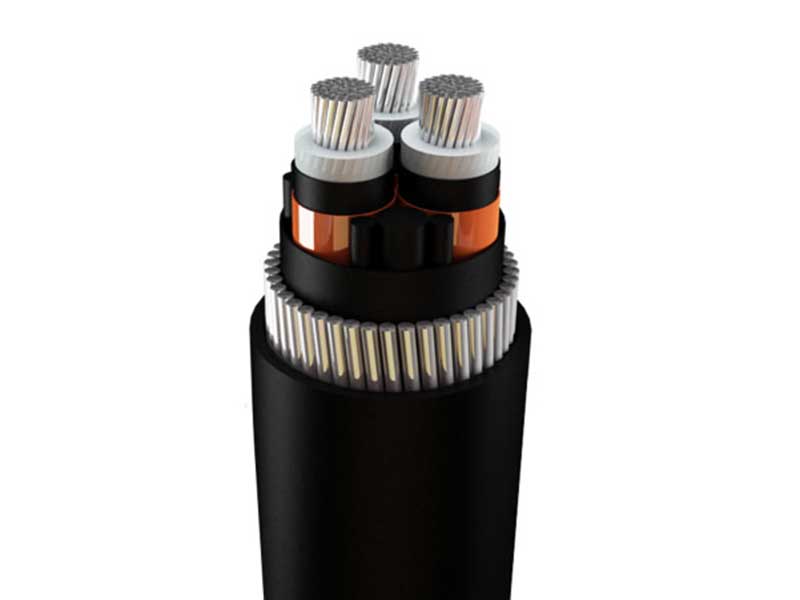

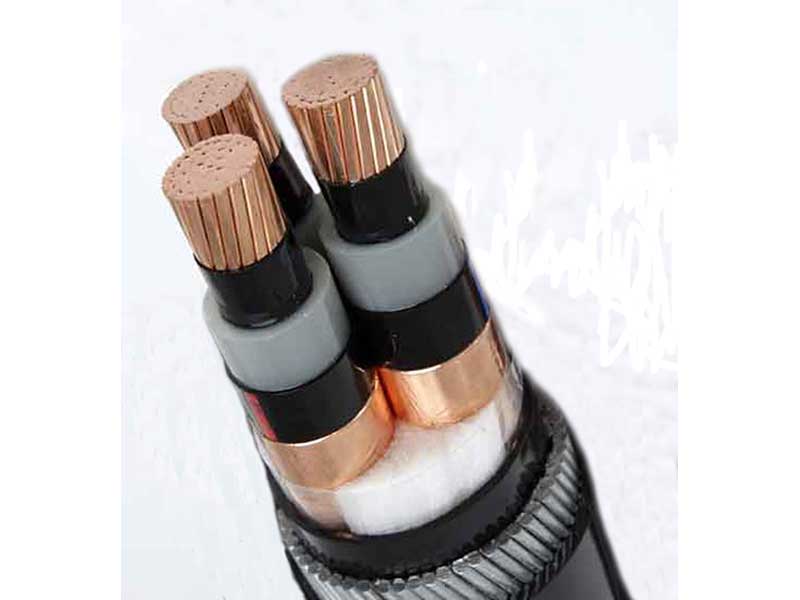

Cable Structure:
1-conductor: Al ili Cu rope, compacted
2-conductor screen: semi conductive layer over conductor
3-insulation: XLPE
4-insulation screen: semi conductive layer over insulation
5-separator: semi conductive tape
6-electric protection/screen: of Cu wire (single-core), of Cu tape (three-core)
7-separator: polyester tape
8-filler: PVC
9-external sheath: PVC

Application:
In earth, ducts, on cable trays, where no mechanical damages or mechanical tensile strains are expected. As distributive cable in urban and rural networks. As connecting cable for industrial plants.

Technical Date:
Nominal voltage: 6/10/12 kV, 12/20/24 kV.
Max network voltage: 12kV, 24kV.
Test voltage: 21 kV, 35 kV.
Standardi: IEC 60 502-2; HRN HD 620 S2 Part 10C; DIN VDE 0276T 620.

Specification Sheet for N2XSY, NA2XSY 6/10/12 kV, single-core cable :

Cross-section	Conductor diameter	Insul. thickness	Diameter over insul.	Sheath thickness	Cable diam.	Cable weight Cu	Cable weight Al	Min bending radius
(nxmm2/mm2)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)	(kg/km)	(mm)
1×35/16	7,2	3,4	16,2	2,5	23	890	660	340
1×50/16	8,3	3,4	17,3	2,5	25	1020	750	370
1×70/16	10,3	3,4	19,3	2,5	27	1210	850	400
1×95/16	11,3	3,4	20,3	2,5	28	1520	950	420
1×120/16	12,7	3,4	21,7	2,5	30	1770	1060	450
1×150/25	14,1	3,4	23,1	2,5	32	2150	1250	480
1×185/25	15,7	3,4	24,7	2,5	35	2570	1430	520
1×240/25	18,0	3,4	27,2	2,5	37	3100	1600	550
1×300/25	20,0	3,4	29,2	2,5	39	3750	1850	580
1×400/35	23,8	3,4	33,2	2,5	41	4750	2300	610
1×500/35	26,7	3,4	36,1	2,5	44	5880	2550	660

Specification Sheet for N2XSY, NA2XSY 6/10/12 kV, three-core cable:

Cross-section	Conductor diameter	Insul. thickness	Diameter over insul.	Sheath thickness	Cable diam.	Cable weight Cu	Cable weight Al	Min bending radius
(nxmm2/mm2)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)	(kg/km)	(mm)
3×35/16	7,2	3,4	16,2	2,5	46	3200	2550	550
3×50/16	8,3	3,4	17,3	2,5	48	3750	2800	570
3×70/16	10,3	3,4	19,3	2,5	51	4500	3200	610
3×95/16	11,3	3,4	20,3	2,6	55	5500	3750	660
3×120/16	12,7	3,4	21,7	2,7	60	6800	4600	720
3×150/25	14,1	3,4	23,1	2,8	64	8000	5200	760
3×185/25	15,7	3,4	24,7	2,9	66	9200	5750	790
3×240/25	18,0	3,4	27,2	3,1	71	10700	6200	850
3×300/25	20,0	3,4	29,2	3,2	76	13100	7500	910

Power cables with XLPE insulation and PVC sheath,N2XSY,NA2XSY specifications(data sheet,table,full form)
