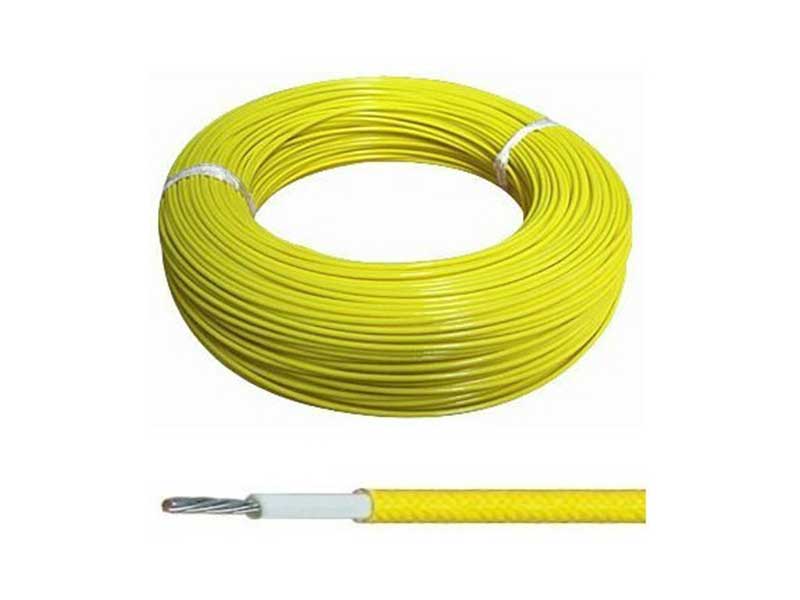

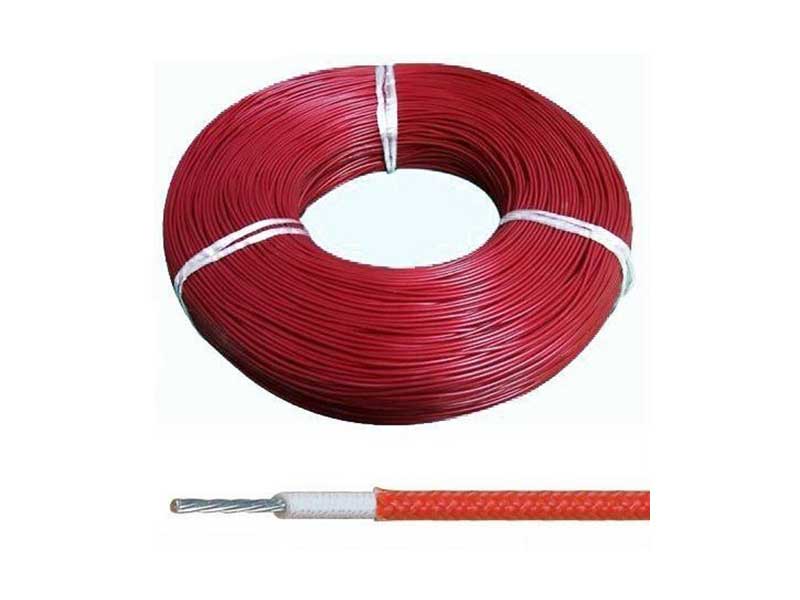

Silicone Rubber Fiberglass Wire (Tinned Copper Silicone Rubber Insulation Fiberglass Braided Wire)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
General of Silicone Rubber Insulation Fiberglass Braided Wire:
Nominal voltage: 300/500V
Temperature Range: -60° C~+180 ° C
Testing Voltage: 2kV
Conductor: Tinned Copper
Insulator: Silicone Rubber
Sheath: Fiberglass
Colours: White-Blue-Red-Black-Brown-Yellow-Transparent
Use: Lead wires for Home electric Appliances, lightings, electronic equipment and sensors etc.
Technical Data:
| Name |
Nominal section (mm2) |
Number/ diameter (mm) |
diameter(mm) | Diameter of wire (mm) | Max resistance 20deg.C Ω/km | |
| norminal | Max | |||||
|
Tinned copper Silicone Rubber Insulation Fiberglass Braided Wire |
0.5 | 20/0.18 | 0.94 | 2.5 | 3.3 | 40.1 |
| 0.75 | 42/0.15 | 1.13 | 2.7 | 3.5 | 26.7 | |
| 1.0 | 32/0.20 | 1.31 | 2.9 | 3.7 | 20.0 | |
| 1.5 | 30/0.25 | 1.58 | 3.4 | 4.2 | 13.7 | |
| 2.5 | 49/0.25 | 2.06 | 4.0 | 5.0 | 8.21 | |
Tinned Copper Silicone Rubber Insulation Fiberglass Braided Wire,Silicone Rubber Fiberglass Wire specifications(data sheet,table,full form)
JYTOP Cable is a professional Silicone Rubber Fiberglass Wire (Tinned Copper Silicone Rubber Insulation Fiberglass Braided Wire) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
